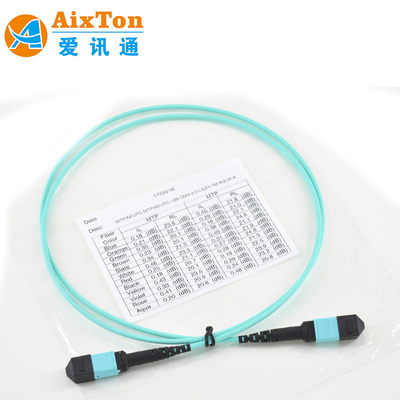

12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb

  • 12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb
  • 12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb
Menşe yeri Çin
Marka adı Aixton
Sertifika ISO9001,CE,FCC,ROHS
Model numarası AXT-MPO-8
Min sipariş miktarı 50 adet.
Ambalaj bilgileri poli çanta veya OEM paketi
Teslim süresi 10-15 GÜN
Ödeme koşulları L/C,T/T,Western Union
Yetenek temini Her ay 100000 adet

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ürün Adı Çok Modlu Ana Kablo (MTP) Fiber modu OM3 50/125μm
10G Ethernet Mesafesi 850 nm'de 300 m Gövde çapı 3.0mm-17.3mm
Dalga boyu 850/1300nm Polonya Tipi UPC'den UPC'ye dönüştürücü
Standart Konnektörler IL ≤0.2dB Standart Konnektörler RL ≥30dB
Vurgulamak

MTP Multimode Patch Cable

,

12 Fiber MTP Patch Cable
Ürün Açıklaması

12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb 0

                                                             12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb 1

OM3 24 Core MPO Male - LC Fiber 0.9mm Fan Out Patch Cables MTP Patch Cable Assemblies



MTP/MPO Trunk Cables

MTP/MPO trunk multifiber cable assemblies facilitate rapid deployment of high density backbone

cabling in data centers and other high fiber environments, reducing network installation or

reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized

MTP/MPO fanouts, spanning MD A, HDA and EDA zones.



Standards Compliance

RoHS, CE (EN 50575 CPR), ISO9001 and WEEE Compliant

EIA/TIA, Telecocordia GR-326-CORE Standards

IEC61754-7

TIA 605-4 (FOCIS 5)

YD/T1272.5



Features

  1. 100% pre-terminated and tested in factory to ensure transfer performance
  2. Rapid configuration and networking, reduce installation time
  3. Supports 40G and 100G network applications
  4. Jacket material: LSZH, OFNR, OFNP available
  5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available



Model SM MM
Connector A:MPO/MTP
Connector Fiber Count 8,12,24,48 Core
Polish PC,APC PC
Insertion Loss Standard ≤0.70dB ≤0.50dB
Elite Low Loss ≤0.35dB ≤0.30dB
Return Loss PC≥50dB,APC≥60dB ≥30dB
Durability(500 Matings) ≤0.2dB
Test Wavelength 1310/1550nm 850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish PC,APC PC
Insertion Loss ≤0.2dB ≤0.2dB
Return Loss PC≥50dB,APC≥60dB ≥35dB
Durability(500 Matings) ≤0.2dB

Product Details

12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb 2

12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb 3

12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb 4

12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb 5





FAQ

12 Fiber 2M MTP Multimode Patch Fiber Optic Cable Wavelength 850/1300nm Standard Connectors IL≤0.2dB 40/100Gb 6



Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
