Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length

  • Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length
  • Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length
  • Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length
Menşe yeri Çin
Marka adı Aixton
Sertifika ISO9001,CE,FCC,ROHS
Model numarası AXT-CAT3
Min sipariş miktarı 3km
Ambalaj bilgileri Ahşap Davul
Teslim süresi 15-20 gün
Ödeme koşulları L/C,T/T,Western Union
Yetenek temini her ay 5000km

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Adı 100 çift Telefon Kablosu İç Mekan Yalıtım Malzemeleri HDPE
Ceket Beyaz PVC İletken Malzeme Katı Bakır
İletken Dış Çapı 0.4/0.5/0.6 İzolasyon malzemesi HDPE
Uygulama İç Mekan/Dış Mekan Paket Ahşap Davul
Vurgulamak

300 Pairs Underground Copper Telephone Cable

,

25P Underground Copper Telephone Cable

,

150P Underground Copper Telephone Cable
Ürün Açıklaması

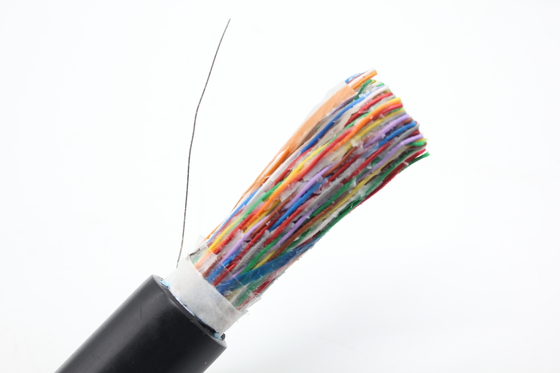

Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 0

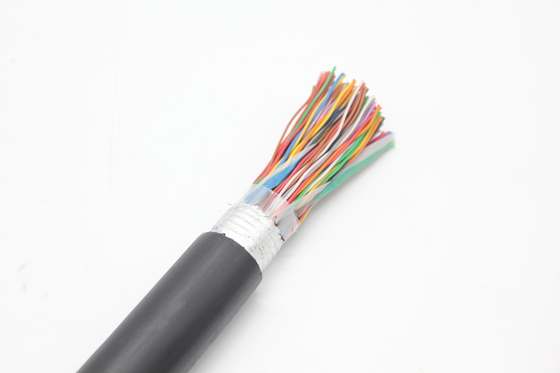

                                                             Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 1

Multi Pair Telephone Cable 5-100pair Waterproof Jelly Underground Aluminium Tape Armoured

0.4 0.5 0.6 copper

Features

1. Conductor: adopt soft round copper wire as conductors, whose diameter includes 0.4, 0.5. 0.6mm
2. Insulation: adopt one of flame retardant polyethylene, PVC
3. Line pairs: every two insulation conductor strands into pair according to the stated chromatogram
4. Sheath : the technical spec of PVC sheath material is up to the standard of GB8815
5. Indoor telephone cable, Type for HYV, HYY, HYYC
6. Sample is available
7. OEM/ODM

Basic Construction
1. Conductor Dimension: 0.33~0.75(±0.02)mm
2. Conductor Material: OFC (Oxygen Free Copper) /BC/CU/CCC/CCA/CCS
3. Insulation: HD-PE (High density polyethylene)/PE
4. Number of Twisted Pair(or not):2- 200P
5. Jacket: PVC (Polyvinyl-Chloride) or LSOH (Low Smoke Zero Halogen)or PE(Polyethylene)
6. Color: different color is available
7. Operating temperature: -40°C - +75°C

Application standard:
YD/T1019-2013,ISO/IEC 11801:2008,ANSI/TIA/EIA 568-B.2
Product Name
Multi Pairs Indoor Telephone Cable
Transmission Standards
YD/T838.4-2003
Jacket
PVC/LSZH/[E
Conductor Material
Bare Copper
Conductor OD
0.4mm/0.5mm/0.6mm
   Armoured   Aluminum Tape/Steel Tape
Insulation Material
PE
Jacket Color
Gray, Black
Sample Status
In Stock
Core
2-200
If Provide free sample
YES
Package
Wooden Reel or Customered

Product Details

Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 2Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 3Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 4

Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 5

Conductor
Diameter		 0.4mm 0.5mm 0.6mm
Number of Pairs Outer Diameter
MM		 Normal Weight
Kg / Km (Approx)		 Standard Length Meters Outer Diameter
MM		 Normal Weight
Kg / Km (Approx)		 Standard Length Meters Outer Diameter
MM		 Normal Weight
Kg / Km (Approx)		 Standard Length Meters
10 10.2 110.9 1000 11.4 172.5 1000 12.7 175.5 1000
20 12.2 116.47 1000 13.9 223.4 1000 15.7 291.5 1000
30 13.7 218.3 1000 15.9 301 1000 17.9 393 1000
50 16.2 316.7 1000 18.9 443.7 1000 21.7 600 1000
100 20.4 568.16 1000 25 801 1000 29.1 1090 1000
200 28.6 996 1000 34 1500 1000 39.2 2100 1000
300 32.4 1418.6 1000 40.4 2161.1 1000 47.1 3014.7 500
600 44.4 2722 500 55.8 4170 500 65.9 5871 500
900 53.1 3985.5 500 67.2 6200 500 81 933 250
1200 60.6 5253.6 250 - - - - - -

Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 6

Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 7

FAQ

Cat3 Solid 10P 25P 50P 150P 200P 300 Pairs Underground Copper Telephone Cable different length 8

Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
